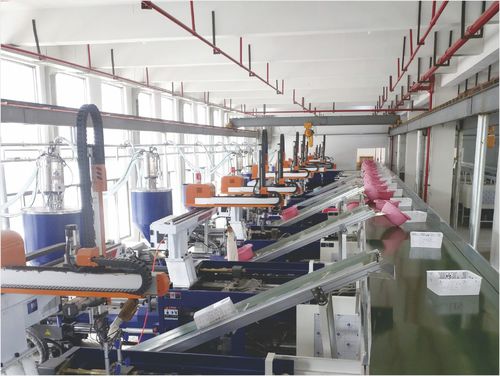

Provide Cartesian robot for injection molding machine from 50 Ton to 4000 Ton with the best overall automation solutions and services.
High Preformance
High Efficiency
Low noise
Higher Stability

Description

Suitable for 250-680T injection molding machine
The modular production and high-strength aluminum alloy precision casting is used for the overall machine and the high-strength aluminum extrusion profiles are used for CNC machine-shaping arm to achieve the high speed, high rigidity, lower vibration, abrasion resistance and long service life with the help of the precision linear sliding rails.

Standard Function
Vacuum confirmation circuit -
While part need to use suction cup by vacuum, one set for standard,(Extra one need cost)

Mold area movement -
Robot can do horizontal movement freely in the mold area to take out the product with barb or others.

Release or grip in mold area -
Can release part or runner in mold area after grip the runner or absorb the part.

Outside mold area stand-by -
Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions.

Language selection -
Language can be changed between Chinese and English.

Standard program sequences -
Use with standard program sequence.

Conveyor interface -
Control conveyor to run or stop.

Free edit mode -
Freely programmable teach programs for flexible applications.

Out mold descent slow speed -
Used to slow the speed when the product is taken out mold, to avoid accidents.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Function	pick-and-place sprue picker
Application domain	for the plastics industry for injection molding machines
Other characteristics	high-speed low-noise
Payload (kg)	0 - 10
Reach (mm)	11000 - 25000
